AquaHouse Turbo TAC Compact High Flow Whole House Water Filter & 99.6% effective Scale Prevention, Water Softener Alternative

AquaHouse Tubo TAC Compact High capacity scale prevention & whole house water filter system, features revolutionary scale prevention technology which will prevent scale at up to 99.6% effectiveness and will descale existing pipework without adding salt or chemicals to the water, an effective water softener alternative with built in water filter to improve water quality.

Compact design, fits beneath the kitchen sink

For all size homes including large homes and commercial use with high flow rate and capacity.

Reference: AH-TURBO-SYS

More Information
Data Sheet
Accessories
Reviews (0)

AquaHouse Turbo TAC Compact High capacity Scale Prevention System & Whole House Water Filter

The AquaHouse Turbo TAC is a compact High capacity scale prevention and whole house water filter system and is ideal for use in virtually all homes including large homes with flow rates up to 38 litres per minute, commercial settings, and light industrial usage. Compact design allows for the Turbo TAC unit to be installed in tight spaces including in standard kitchen cupboards. Proven scale prevention technology up to 99.6% effective, a genuine alternative to conventional water softeners.

How it works: 2 in 1 system

Stage 1:

The water passes through the outer layer of the filter which consists of an advanced radial flow carbon block filter to reduce levels of Chlorine, THM’s, PCB’s, and levels of heavy metals if present.

Stage 2:

The water then moves through the inner core of the filter where the scale prevention takes place without adding any salt or chemicals into the water. The filter does this by using a process called Template Assisted Crystallization (TAC), which conditions the water and converts the hardness minerals in the water (Calcium and Magnesium) into harmless, inactive microscopic crystals. This prevents the Calcium and Magnesium from bonding together to form limescale, and also over time will descale existing pipework and appliances. Because of this process no natural minerals are lost from the water, and no chemicals or salts are added either.

This filtration process prevents scale from forming in pipework and appliances, around sinks and washbasins, and will help prolong the life and efficiency of your appliances. The scale prevention media has been tested independently against the German DVGW protocol for scale prevention and has achieved up to 99.6% effectiveness rating.

Compact Design

Fits inside standard kitchen cupboards and generally is installed under the sink

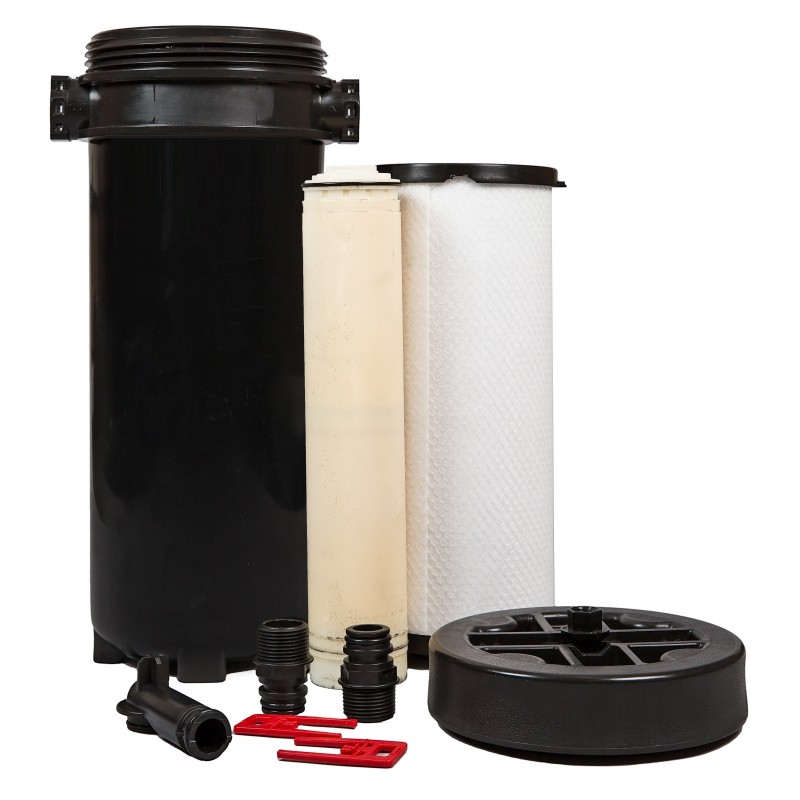

Two filters in one pod, the TAC scale filter slots into the middle of the radial flow carbon filter, allowing the unit to be half the size normally required.
Unique design allows for the filters to be changed from the top of the housing, allowing for easier filter changes

Template Assisted Crystallization compared to a water softener

Up to 99.6% efficiency independently verified using the German DVGW test for scale prevention.
The proven water softener alternative with minimal maintenance
No moving parts to break or fail, doesn't waste water or need regeneration or backwash
Total boiler and appliance protection with no associated corrosion issues, clears existing scale deposits from pipes, fittings and appliances.
Unlike water softeners - no salt discharged into the environment
Unlike water softeners - no salt to buy or add which will save you money

Installation

The system comes complete with filters and supplied with 25mm (1" BSP) fittings. This is simply connected inline with your cold water mains pipe to treat the water for the whole home / premises. This is a very straight forward installation for any plumber.

Approvals

The TAC water filter media used in this system meets NSF 61 standard. This is the American standard for drinking water products which is world renowned and internationally recognised.
The scale prevention media has been independently tested up to 99.6% efficiency using the German DVGW test protocol for scale prevention.

Technical Data

Size:

Height: 457mm Diameter: 254mm

Flow rate:

Up to 38 Litres per minute constant flow, can exceed this for short periods of peak flow*

Filter change Life span:

Radial flow carbon block: Replace Yearly / 186,000 Litres (whichever is sooner)

Inner TAC scale filter core: Replace every 2 years

Filter replacement codes:

AH-TURBO-RCTO - Yearly Carbon Block

AH-TURBO-RTAC - 2 Years TAC Inner Core

Connections:

1” BSP male threads supplied with unit, to be connected inline with water mains pipe.

Working Conditions:

Incoming Water Temp: 4 - 30°C

Working Pressure: 1 bar - 4.8 bar, a pressure limiting valve must be installed when pressure exceeds 4.8 bar (70psi).

Working Conditions: For indoor use - protection required when installed outdoors.

*Peak flow: The system will treat water up to the peak flow. The system can be run constantly at the lower end of the flow rate of 38 litres per minute for 24 hours a day, 365 days a year and will maintain constant scale protection, the system will also maintain scale protection at peaks in flow above this for several minutes but not constantly for hours/days at this flow rate.

If you require a scale prevention system with a higher constant flow rate then please contact us for details, we can supply bespoke scale prevention systems for any flow rates required.

Height	457mm
Product Type	Salt free water softener alternative & whole house filter
Filter Media	TAC, Radial Flow Carbon Block
Diameter	254mm
Flow Rate	up to 38 Litres Per Minute
