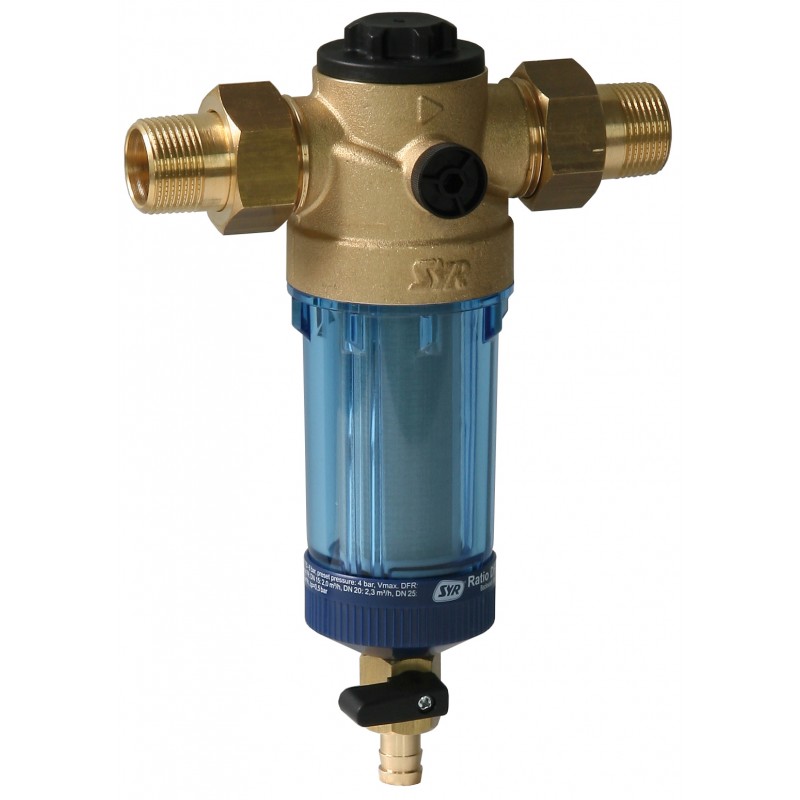

SYR Ratio FR DN20 Self Cleaning Mesh Filter with Backwash Valve

Sediment Filtration:

The SYR Ratio is a compact and high flow self cleaning sediment filter system designed to remove sediment particles down to 90 microns in size. Can be easily cleaned using the innovative self cleaning manual back wash valve once filter is full, meaning that no replacement filters are required as the internal mesh filter is washed and re-used.

The unit will remove rust and sediment particles from the incoming water larger than 90 microns size, with high flow rates the SYR Ratio can be used on private water supplies and for whole house sediment filtration where sediment is a concern up to 73 Litres per minute.

Specification:

• Includes complete filter unit with fittings for 3/4" BSP and 1" BSP
• Filter micron rating - 90 Micron
• Self Cleaning Backwash valve - no filter changes are needed
• Operating pressure: Min 2bar - Max 16bar
• Operating temperature Max 30 °C
• Max flow rate - up to 73 litres per minute (dependant upon incoming water pressure)
• Made in Germany

Dimensions:

• Height: 184.5mm
• Diameter: 82mm
• Width (including 3/4" BSP fittings): 152mm

Please note this is a pre-filter system only and is not intended to disinfect the water or remove microbiological contaminants.
