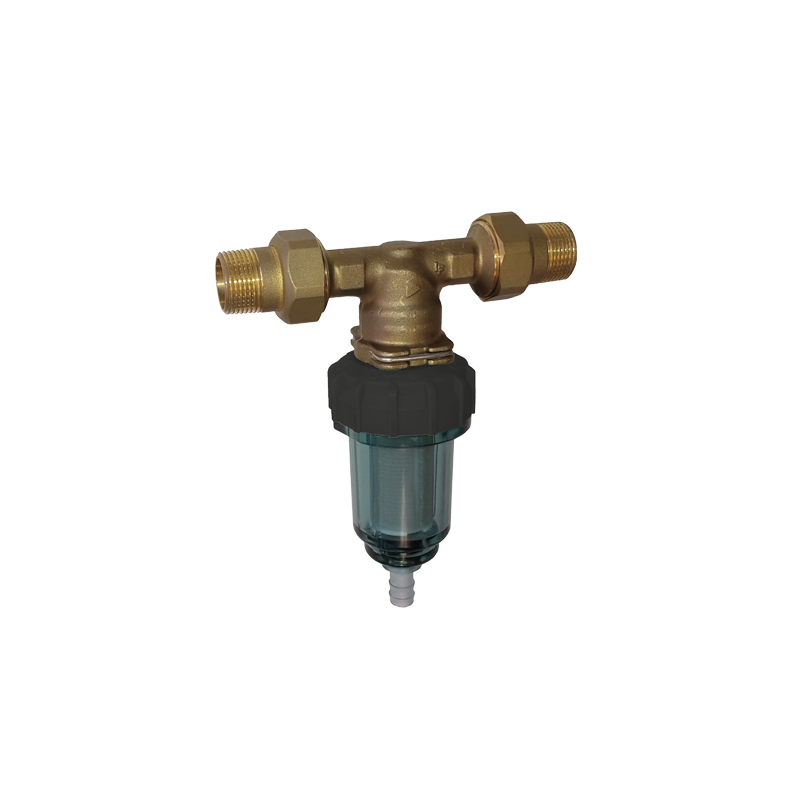

SYR Ratchet Self Cleaning Sediment Filter with Backwash

Sediment Filtration:

The SYR Rachet is a small self cleaning sediment filter system designed to remove sediment particles down to 40 microns in size. Can be easily cleaned using the innovative self cleaning manual back wash valve once filter is full, meaning that no replacement filters are required as the internal mesh filter is washed and re-used.

The unit will remove rust and sediment particles from the incoming water larger than 40 microns size, ideal for use on the water supply to small properties, boats, recreational vehicles, and individual appliances where sediment is a concern.

Specification:

• Includes complete filter unit with 3/4" BSP fittings threads
• Filter micron rating - 40 Micron
• Self Cleaning Backwash valve - no filter changes are needed
• Operating pressure: Min 2bar - Max 10bar
• Operating temperature Max 30 °C
• Max flow rate - up to 40 litres per minute (dependant upon incoming water pressure)
• Made in Germany

Dimensions:

• Height: 165mm
• Diameter: 67mm
• Width (including 3/4" BSP fittings): 95mm

Please note this is a pre-filter system only and is not intended to disinfect the water or remove microbiological contaminants.
